Pipe Insulation & Coating Conveyor

Parin Engineering is a well-known manufacturer of PU Foam & Internal and External Powder (FBE) Epoxy Pipe Conveying Plants.

Steel Pipe Foam Insulation Equipment Pipe Insulation & Coating Conveyor

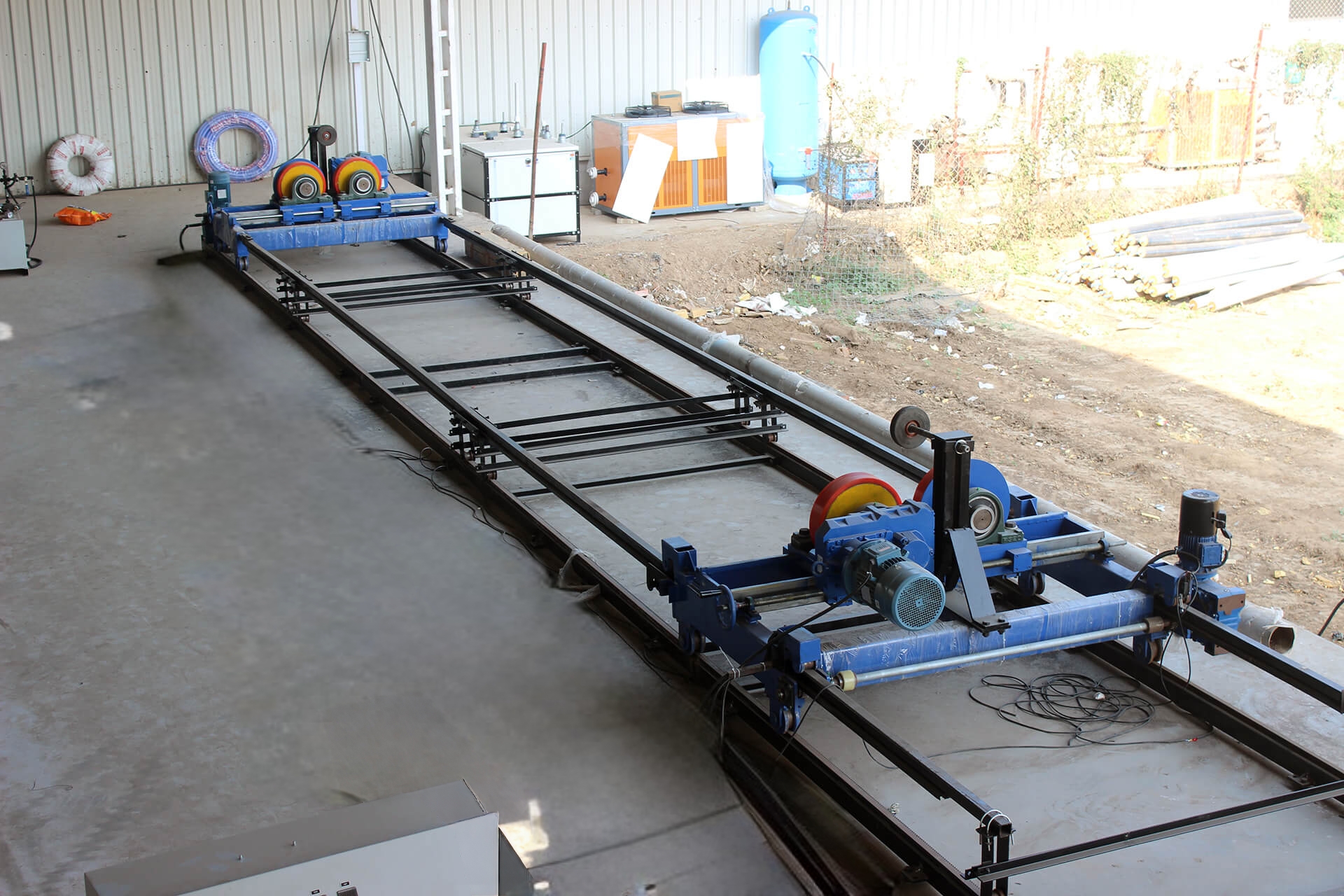

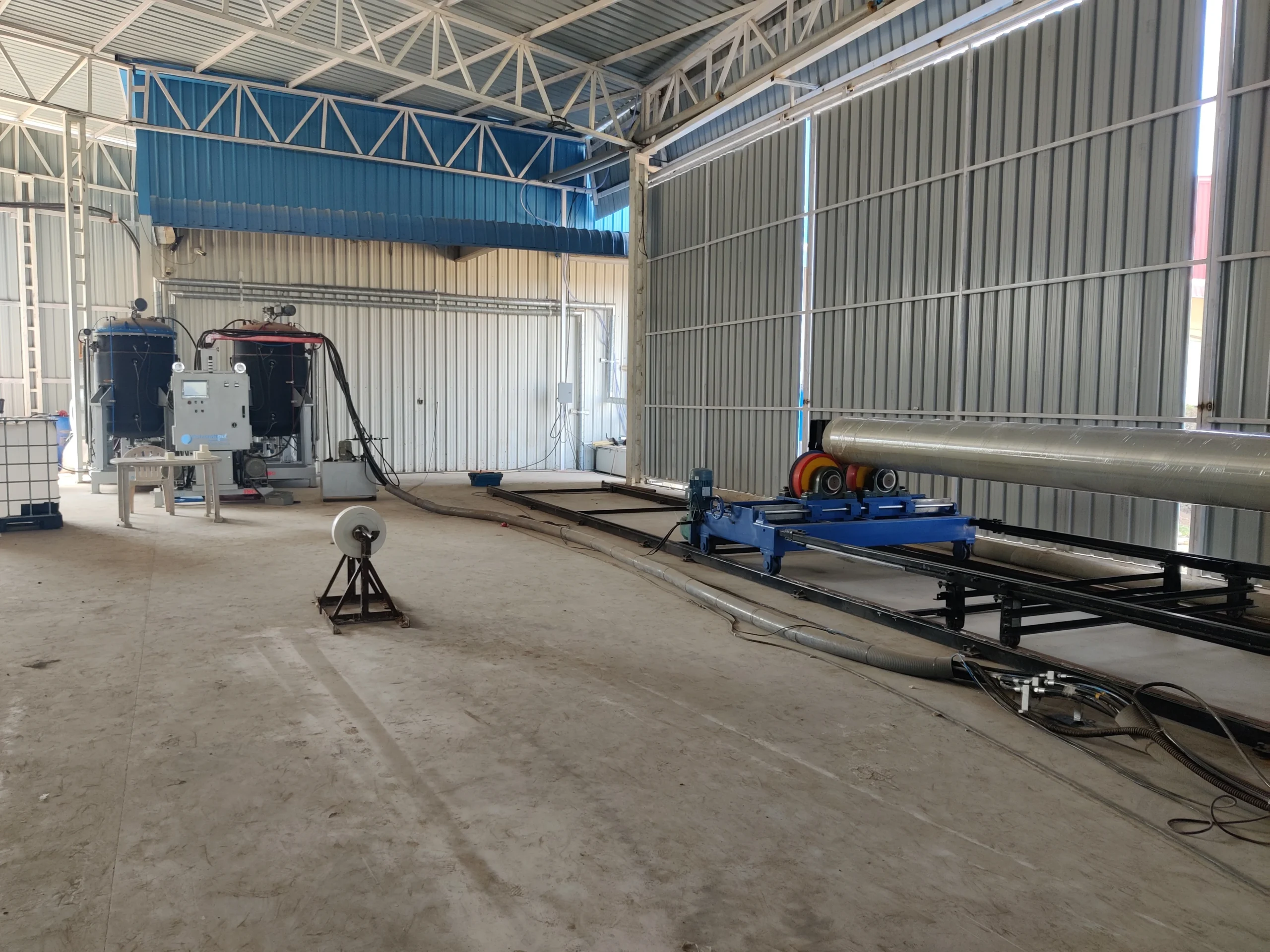

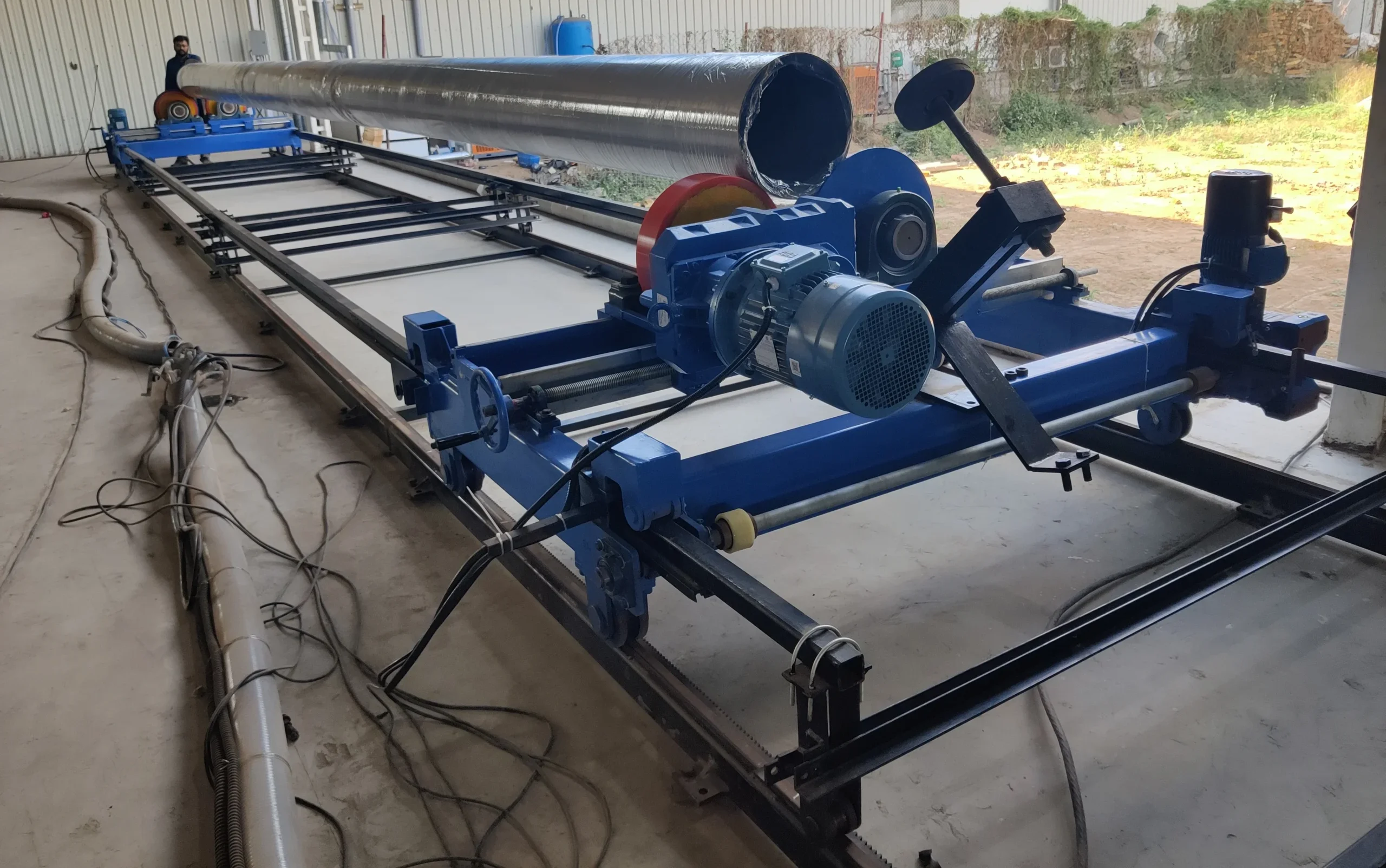

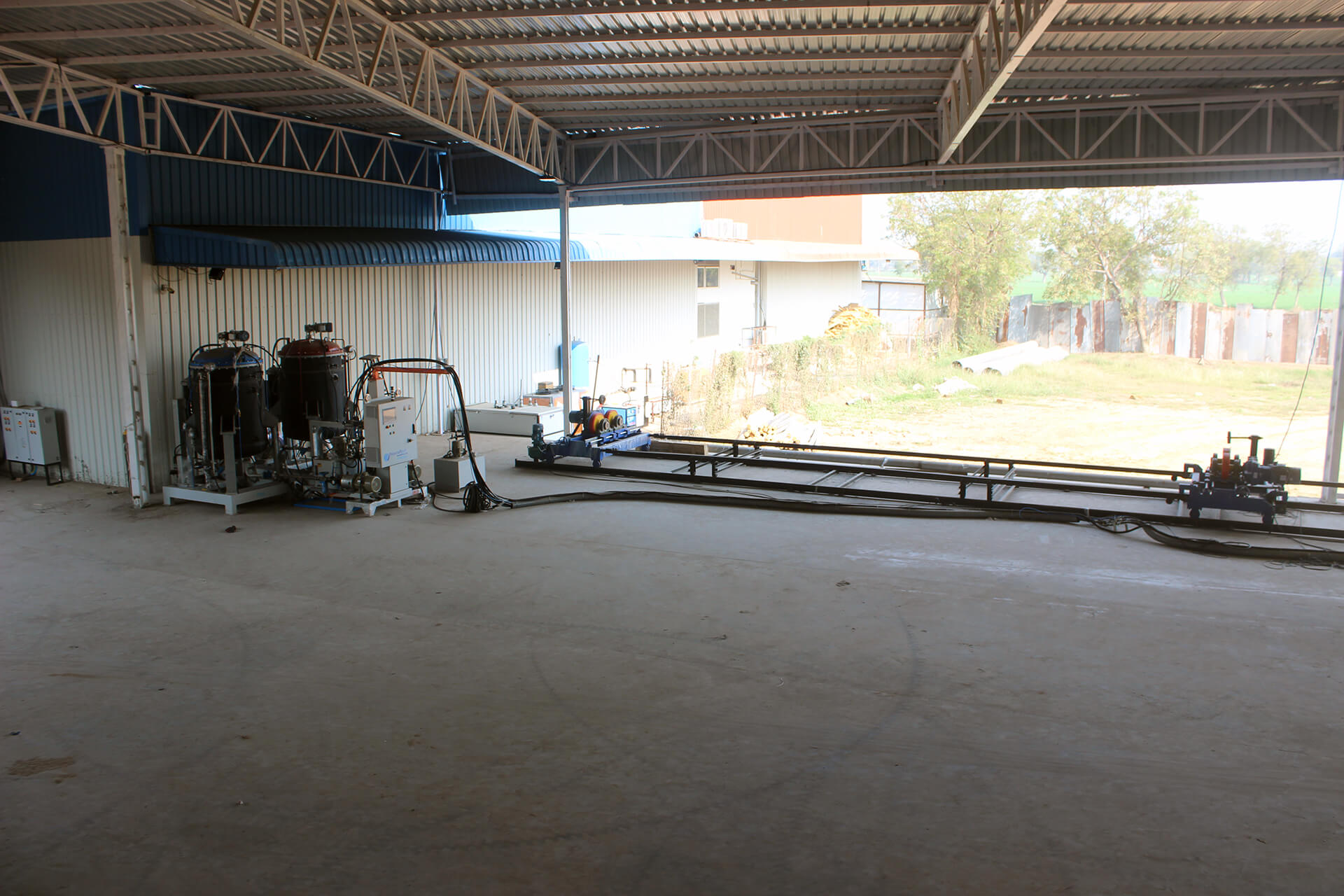

Solid PU pipe coatings are primarily applied to protect the interior surfaces of pipelines transporting water or abrasive media. PU foam pipe coating on the exterior of pipelines is added for thermal insulation purposes. Bauhaus has supplied several pipe coating plants for the application of both types of coatings. For applying the foam on the exterior, Bauhaus offers various solutions, such as a continuous system with a helical pipe conveyor or a discontinuous system using a pipe coating buggy. In the latter case, the pipe is positioned with the outer ends on a traveling pipe rotation unit and passes a stationary spray gun. PU pipe coating plants come equipped with all necessary PU pipe coating equipment, including a tank farm, temperature-controlled day tanks, dosing equipment for adding blowing agents, and a main mix pump with spray guns, all supplied by renowned manufacturers.

Pipe sizes between Ø4 and Ø72 inch
Pipe length 6 & 12 meter
Thicknesses up to 200 mm

Features

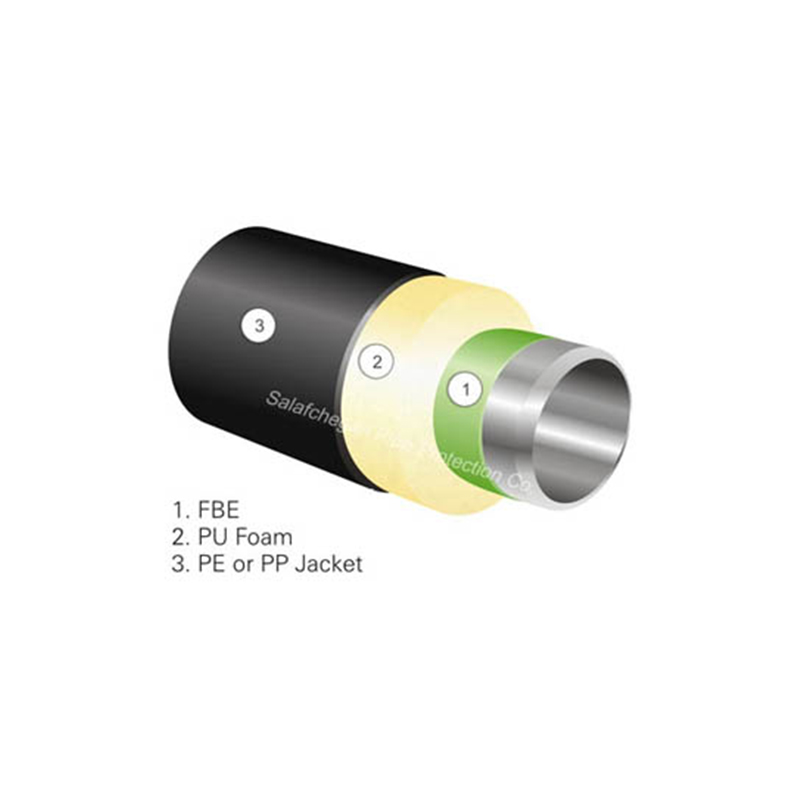

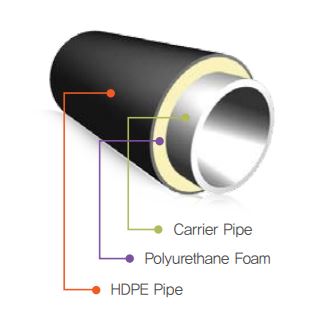

Steel pipe foam insulation equipment is utilized to apply an insulation layer and an anti-corrosion layer to the external surface of steel pipes, creating a thermal insulation layer. It offers several advantages, including continuous operation, high production efficiency, low cost, energy savings, and no pollution.

TECHINICAL SPECIFICATION

Key Fetures

Durability
Reduce project cost
Low heat loss, saving energy
Easy to establish (Erection & Commissioning)
Easy to lubricate and disassemble.
High production rate
User Friendly design
PLC-based system controlled by HMI control panel.
Anti-corrosion, good insulation performance, long service life
Spare parts are available quickly
Superior quality products
Environment friendly

Description

The PU pipe coating (polyurethanes pipe coating) is either sprayed onto the pipe surface with the pipe ends placed on rotation units or onto the pipe travelling passed the airless spray gun on a helical pipe conveyor. The last type of application requires a very fast curing PU as before the pipe hits the first conveyor wheel after application the pipe coating must be able to carry the weight of the pipe.
