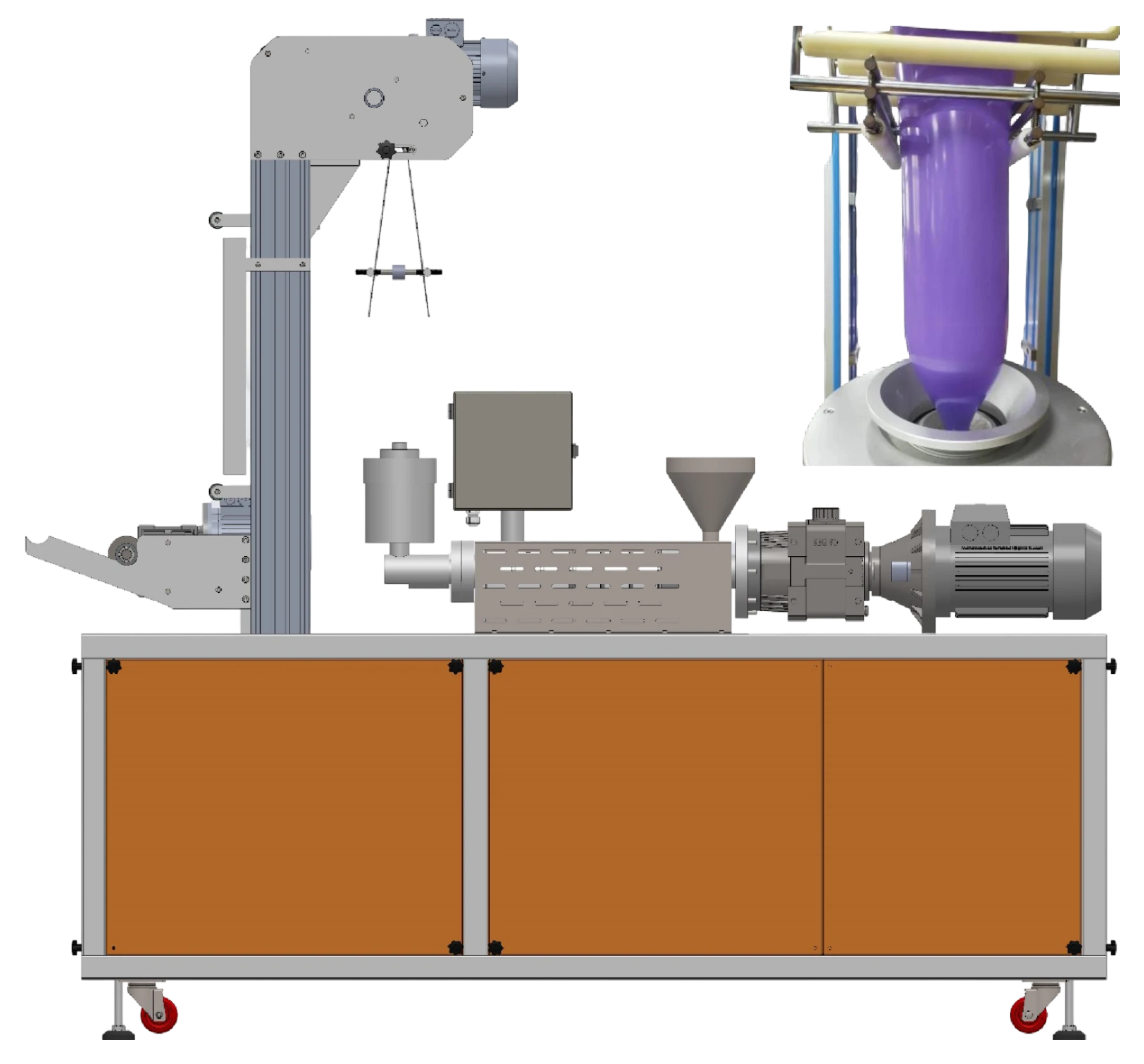

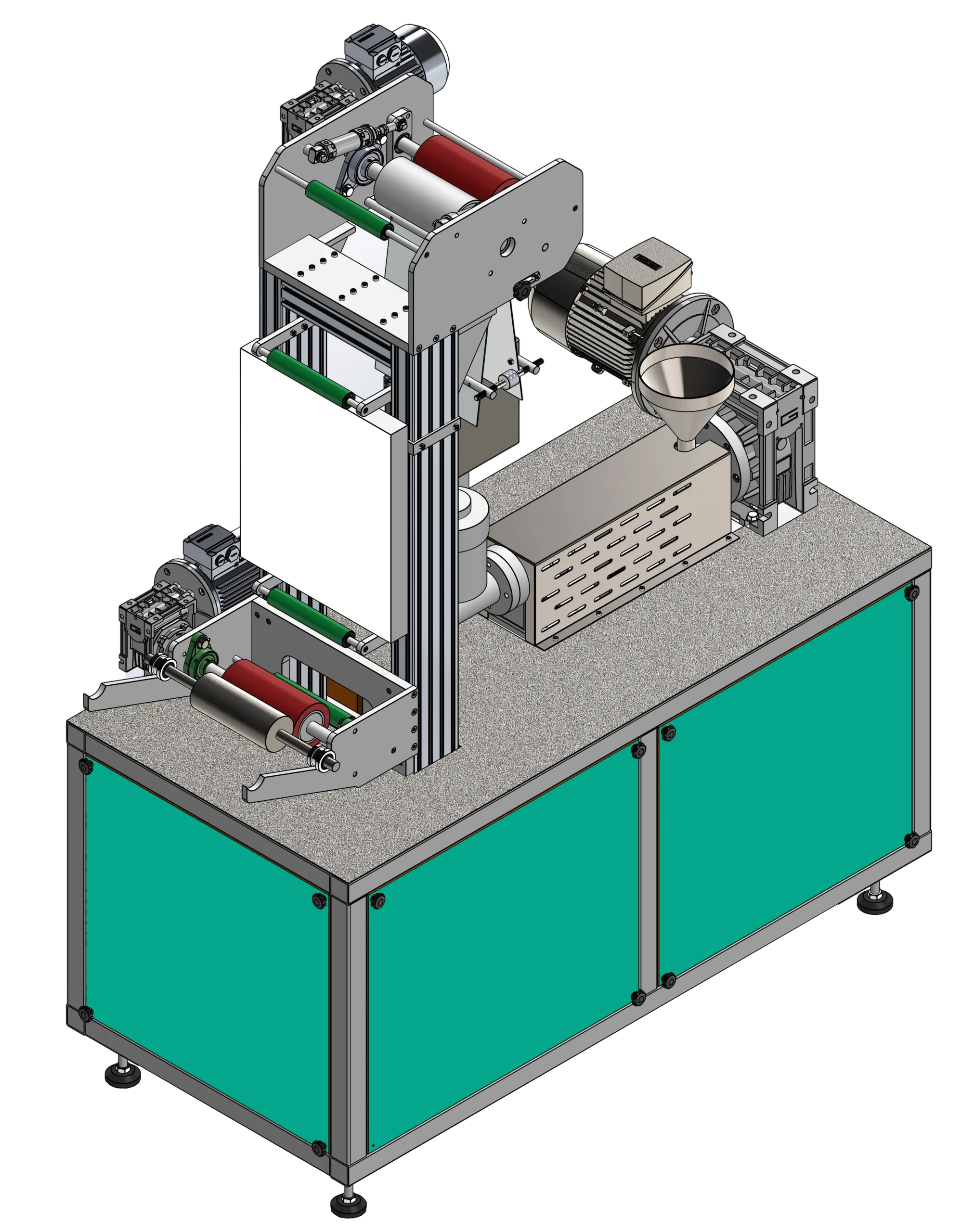

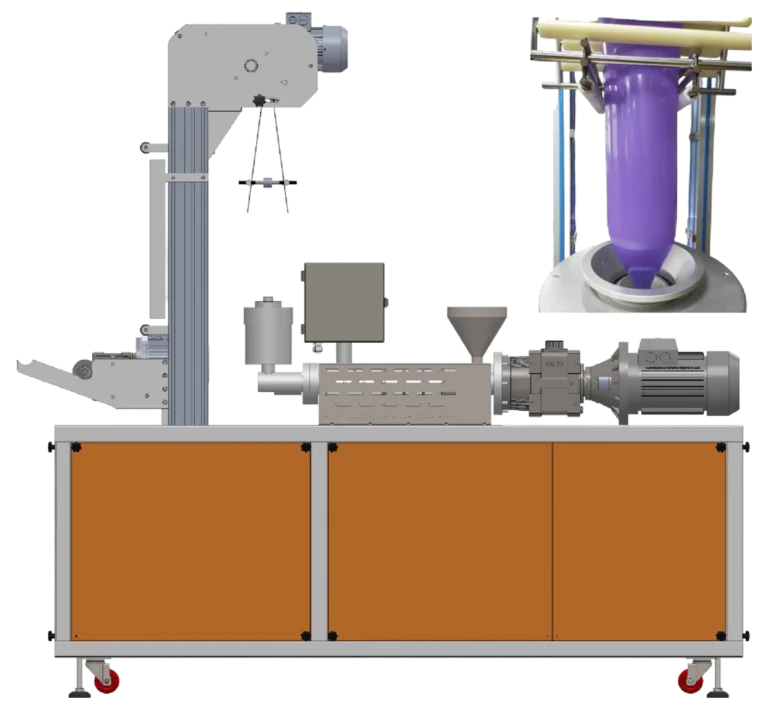

Lab Blown Film Machine

Laboratory extruder is specially designed for the trial-level or entry-level user, or the small scale production. Modular design makes it very flexible against different recipes.

LAB BLOWN FILM MACHINE

Suitable for trying different combinations of LD / LL / HM / HD & different types of MASTERBATCH and its compounding. Ready to use and has wheels to move the plant. Just requires a power connection, air and water supply.

Single & MultiLayer Blown Plant
Polymer : – LD, LDPE
Output : – 3 to 15 Kg/hr.
Main Drive :- Heavy Duty A.C Drive with inbuilt DTC Controller

OPTIONAL

PLC CONTROL SYSYTEM WITH HMI
INSPPECTION LIGHT
STATION UP-DOWN

STANDARD SIZES

LAB BLOWN FLIM MACHINE
MODEL	SCREW DIA	L/D	KW	THROUGHPUT KG/HR.
PEG-25	25	22	1.5	1 TO 3
PEG-30	30	25	2.2	5 TO 7
PEG-35	35	30	3.7	10 TO 12
PEG-45	45	30	5.5	15 TO 18

Also available in customized Sizes

LAB BLOWN FLIM MACHINE

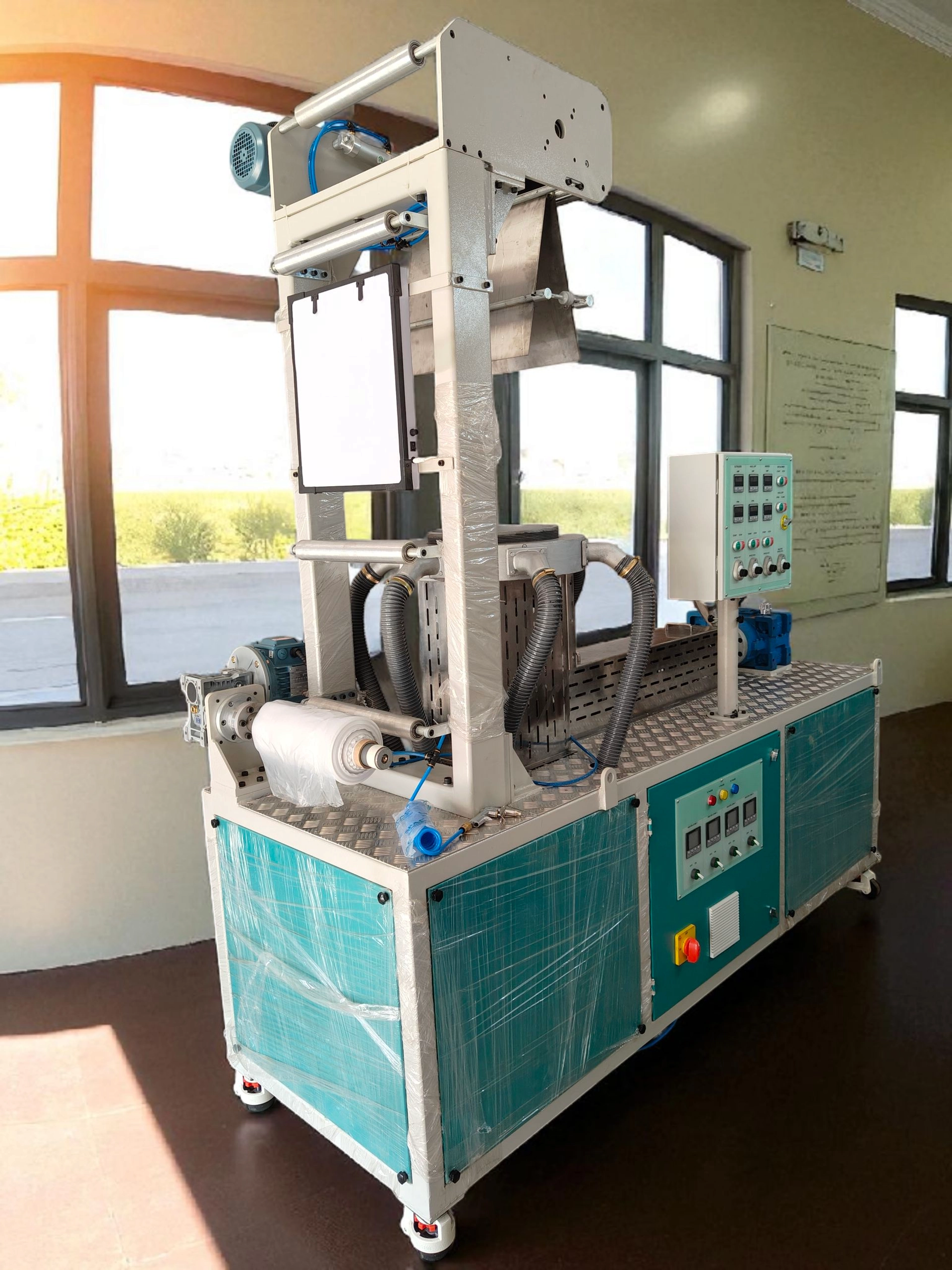

The machine was specifically designed and crafted for laboratory purposes and small-scale industries for production. It is easy to operate, offers trouble-free performance, requires low maintenance, occupies minimal working space, and is easy to transfer—all excellent features that elevate the machine to the premium category.

Our Lab Extrusion Machine is utilized in various government laboratories, granule production manufacturing industries, sheet manufacturing sectors, compounding or testing facilities, small-scale production industries, and more. We offer a range of models, as shown below, to meet customer requirements. Additionally, we provide customized machines tailored to specific needs. We are also manufacturers of Lab model Extrusion machine parts, suppliers of spares, and service providers.

WHY PARIN ENGINEERING?

FEATURES

Compact design
Master batch color dispersion test.
Film blowing property test.
Direct Mount Motor
Panel Mounted in side stucture
Easy Movement with Caster Wheel
Easy Operating
Low Maintenace
Small Batch Production
Education and Training
Colour and additive master batches

MACHINE DESIGN

Our compacted lab extruders integrated mechanical parts and electrical parts together, which is followed plug-in concept.

To facilitate data acquisition, we employed many sensors along with machine and remained more interface and I/O design so that it can be capitalized in the future. You have a big range in screw geometry and screw speed.

CONTROL SYSTEM

Control system can be both on-site and off-site. Our experts can diagnose your machines via the internet module. From button panels to industry computers, we can customize a control system according to your specific requirements and budget.

APPLICATION & BENEFITS

Applications of our lab single screw extruder.
Research and development
Small batch production
Quality Control
Education and training
Initial formulation development

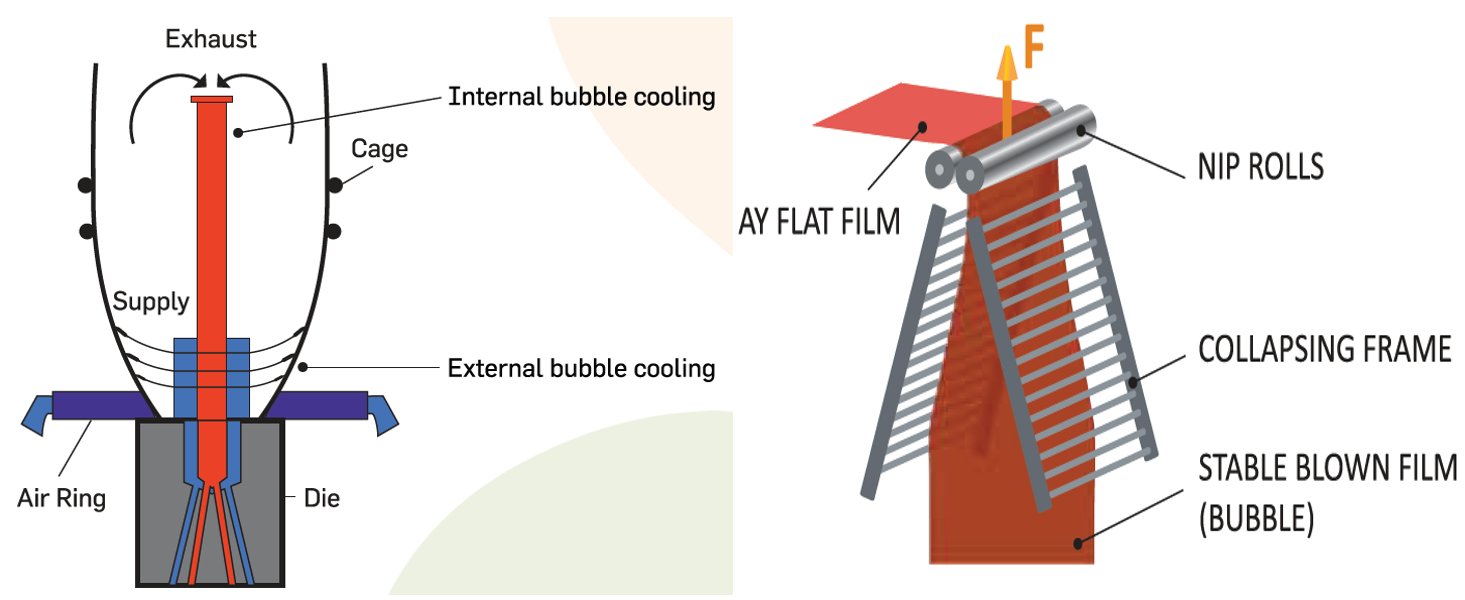

Production of simple layer tubular film blowing.
Optimization of blown film production technology.
