Hydraulic Broomer

Parin Engineering is a well-known manufacturer of Asphalt Batch Mix Plants and Drum Mix Plant. Our product is ideal construction equipment for manufacturing asphalt for building roads through batch mixing.

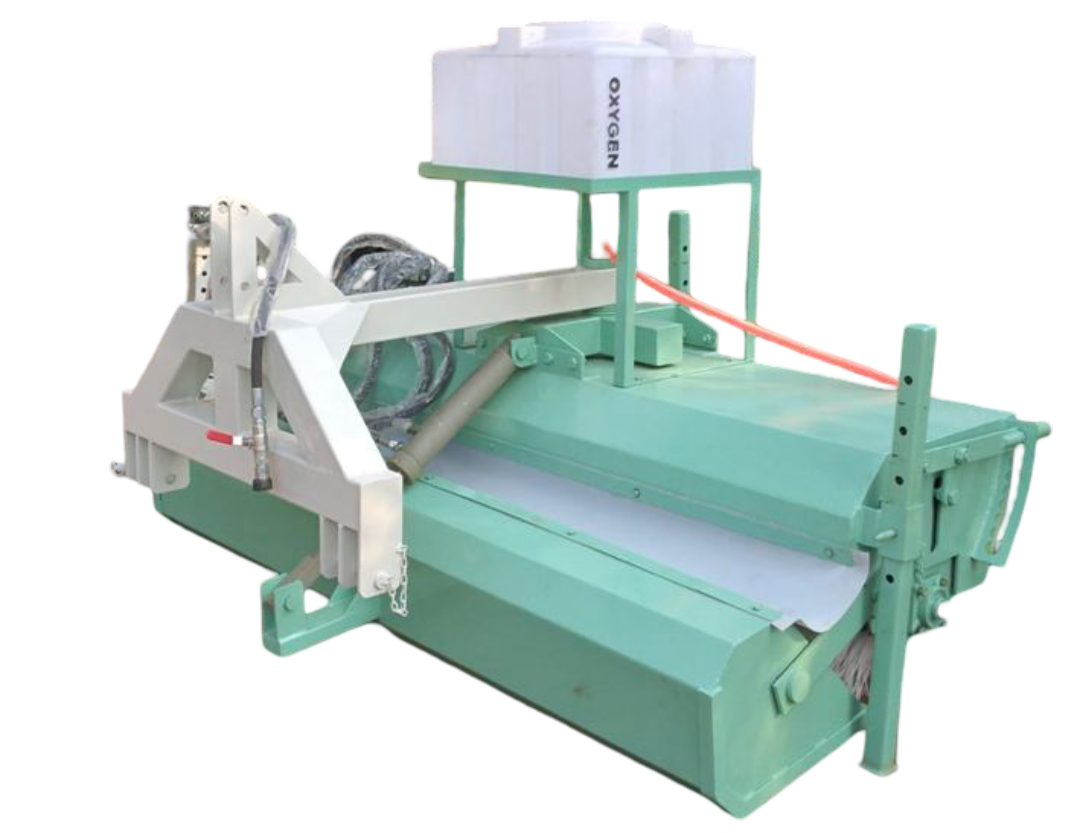

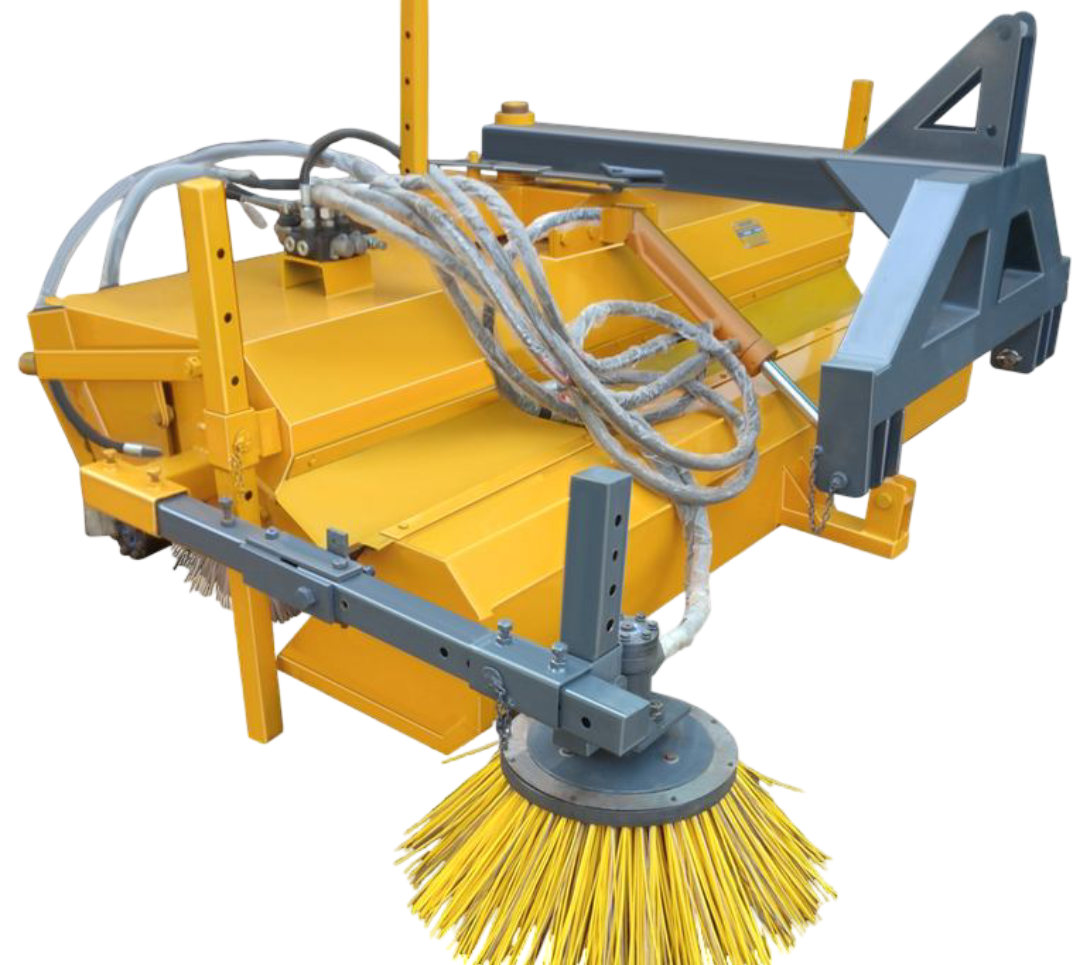

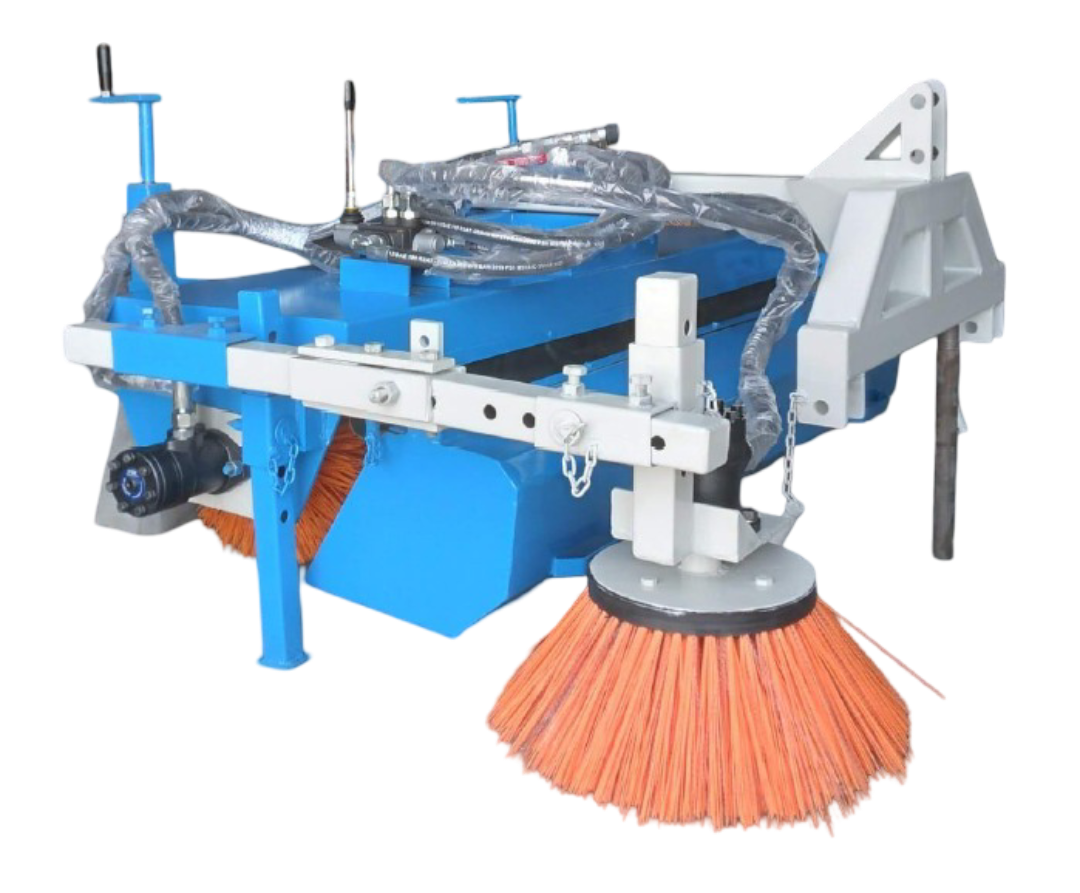

HYDRAULIC BROOMER

It can be attached to tractors, loaders or forklifts. To make sweeping more powerful we use PP convoluted brush rings. Moreover, it can be used on rough road works job with or without the use of dust collecting hopper.

Features

Tractor Mounted Road Sweeper
2.25 meter clear sweeping
Adjustable on both sides as per the slope of road
Nylon bristles / Iron bristles (optional)
Wet Mixed Macadam Surface
Two Heavy duty Wheels

TECHINICAL SPECIFICATION

Description

Provided hydraulic broomer machine is an expert sweeping equipment for vehicle parking lots, tourist attraction places, walking streets, residential areas, broadly expanded exhibition venues, large industrial parks, municipal sanitation and different large general areas. In addition, our it can consistently function for 6-8 hours a day. The complete structure is rigidly made to last for decades. This implement is attached to the tractor and collects dust in the dust collection unit. The large brush on the broomer machine has nylon bristles.

Key Fetures

Sweeping Width (m) : 2.25 Mtr.
Automation & Semi-Automatic
Hydraulic side brush for low-wall sweeping, including water-spray system
Water-spray system to bind dust, intermitting pump, and 100 or 200 Ltr. tank

Specification

Rate of sweeping at 3KM/HR (Continue Sweeping)
Max operating pressure 160 BAR
Max. Torque : 310n/m
Speed range of brush : 7-375RPM (continue speed)
Operating speed should not exceed 3kmph for better cleaning.
When starting up a new brush it should initially be run at the min no of revolutions. As the brush wears down,
the diameter of brush reduces and the no. of revolution must be increased to compensate.
The rotation speed of the side brush should be adjusted so that the swept material is swept to the center of
the machine path.
There is a provision of adjustment of diameter of brush.
Grade of hydraulic oil : Servo 68.

Technical Information

Main Brush
Bristles / Fill Material : PPN or Steel
Diameter : 600 mm
Length : 2000 mm
Rpm of Brush : 7 to 375 RPM
Drive : Hydraulically Operated
Side Brush
Bristles / Fill Material : PPN or Steel or Mixed
Diameter : 550 mm
Drive : Hydraulically Operated
Water Spray System
Water Tank : 150 liters or as per requirement
Water Pump : 12V DC Pump
Waste Collecting Hopper
Volumetric Area : 0.25cum (250 Liters)
Super Elastic Wheels
Diameter : 200 mm x 50 mm Thick
Load Bearing Capacity : 500 kg.

How It Works

Our silos store plastic granules in a vertical orientation, optimizing space usage. Materials are loaded from the top and discharged from the bottom, utilizing gravity to ensure efficient material flow. These silos are ideal for both temporary and permanent storage solutions.

BENEFITS

Adjustable Brush Height, Replacable Brushes
Working width 2250 mm
Machine casing stable and rigid construction
Run-on system prevents sudden stop of the heavy brush
Space-Saving
Enhanced Durability
Operational Flexibility
