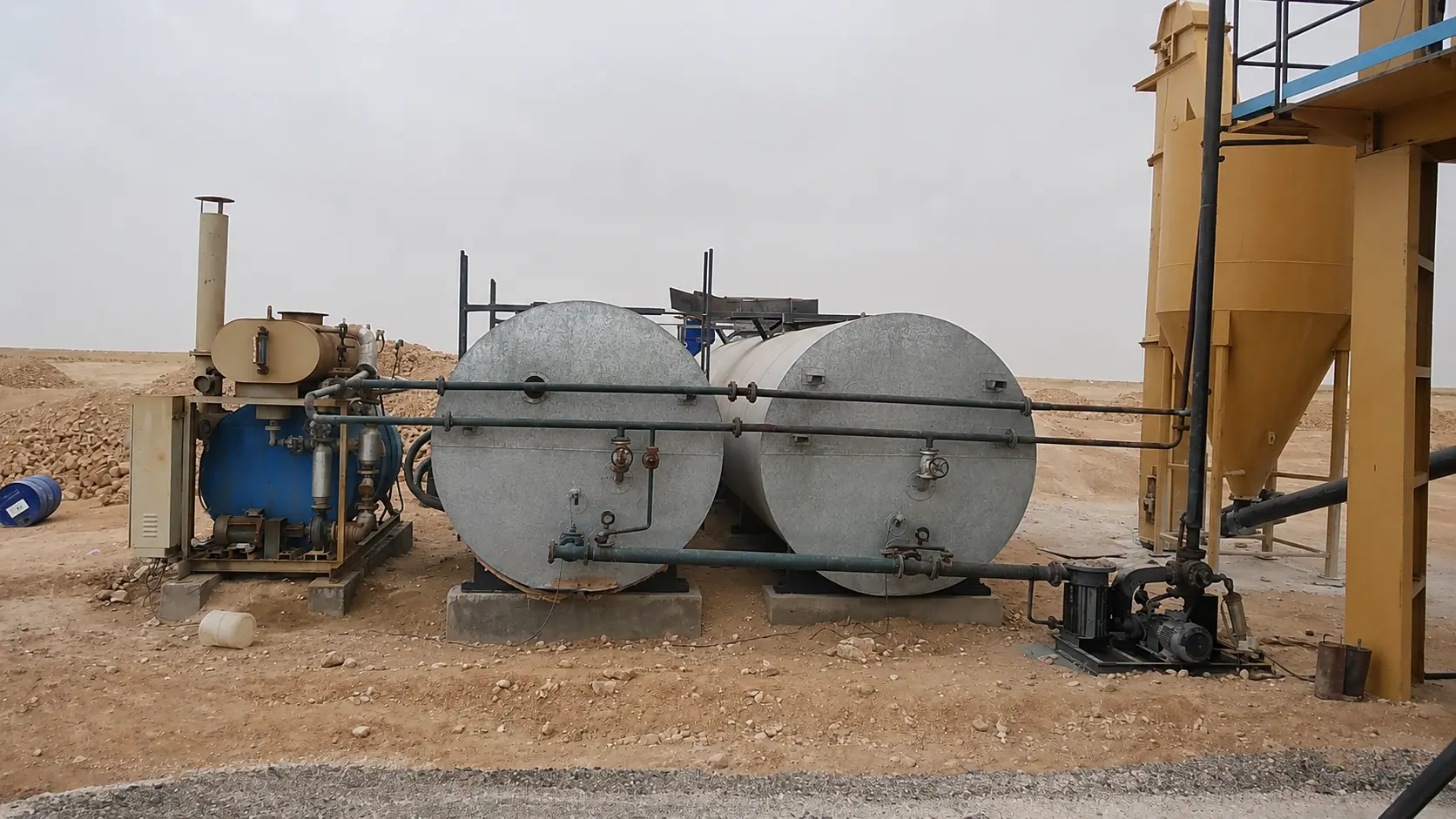

Bitumen Storage tanks are supplied with an ‘O”/’U’- shaped horizontal position in accordance with the customer’s choice. An oil fired auto control pressure jet burner is mounted on each tank to heat the bitumen to the desired temperature. In this direct-heating type of tank, the bitumen is heated by firing the burner into a heating coil made of steel pipes.. Tank capacity available is 10, 15, 20, 25 tons & 50 tons.

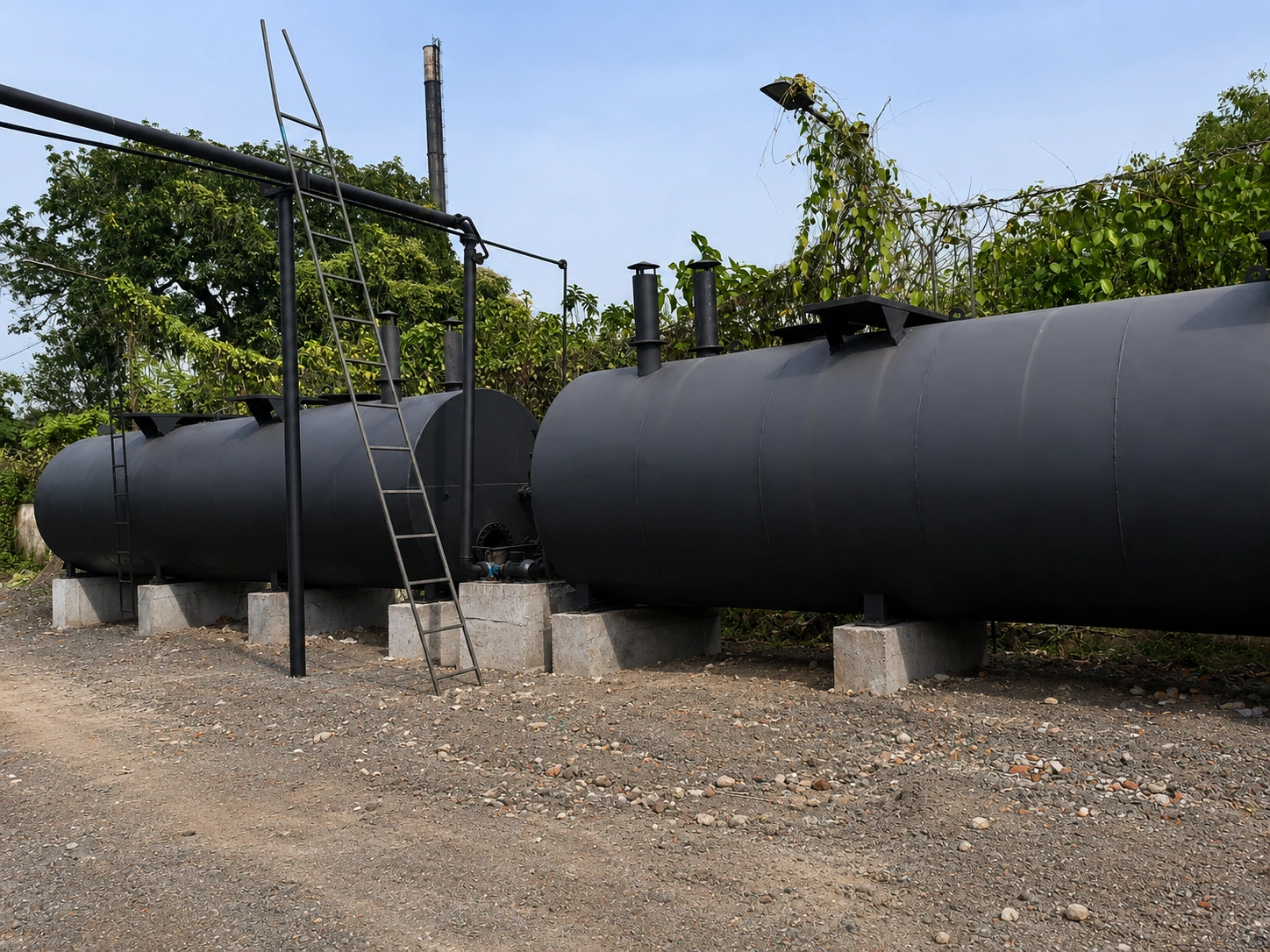

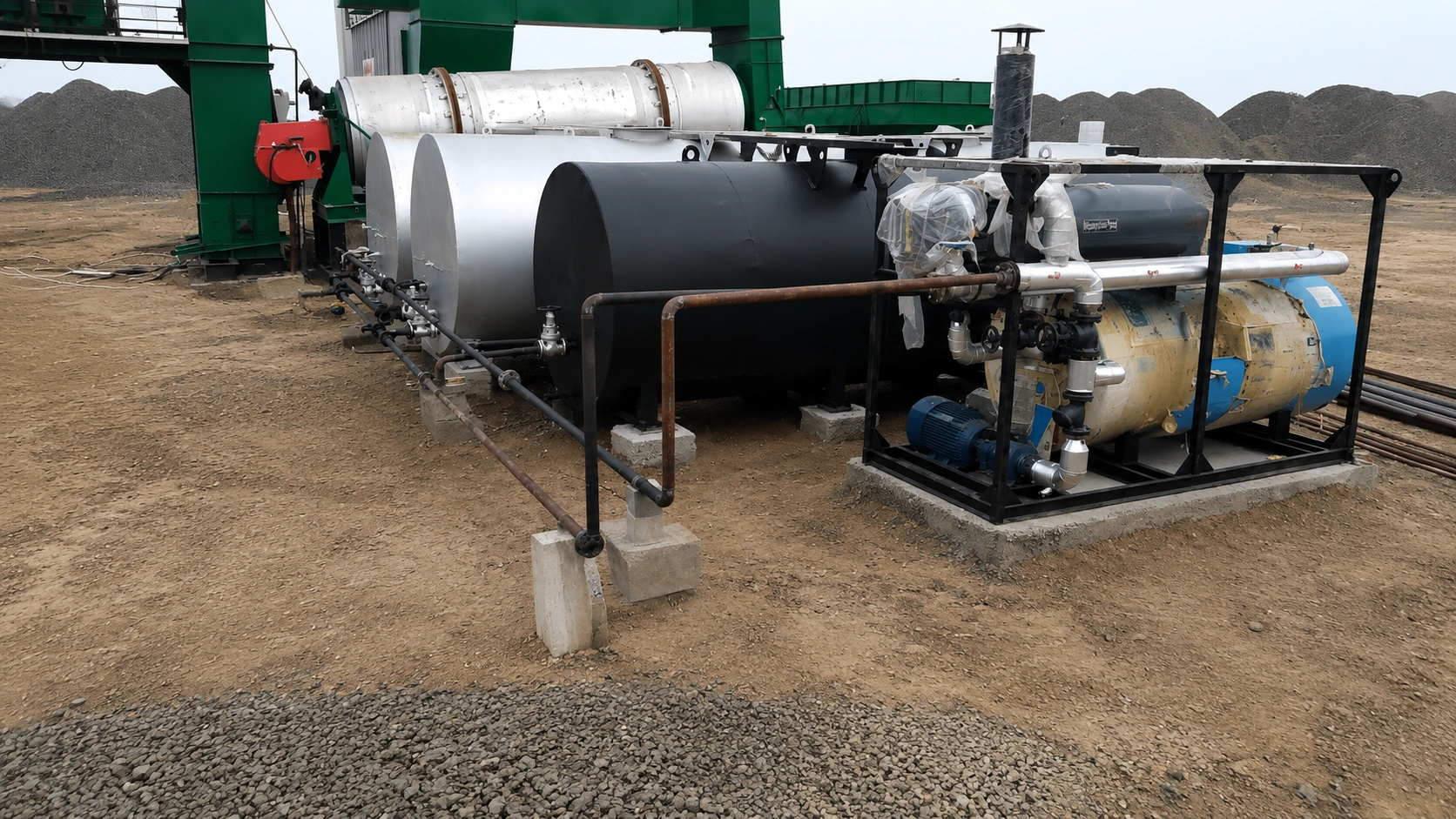

Bitumen In-direct heating type tanks-cylindrical in horizontal position, the bitumen is heated by circulating hot therm oil through a heating coil. A therm oil heater with an oil fired burner heats the therm oil & this hot-oil is circulated through the heating coil inside the bitumen tank by an oil pump on the heater. A single heater can easily heat nos. of tanks as required in a continuous process.
The temperature of oil is very well controlled by an auto thermostat on heater and so, bitumen never gets over-heated. Thus, the quality of bitumen (viscosity) never gets deteriorated/spoiled in this kind of indirect heating system. Fuel consumed to heat every ton of bitumen is also less compared to than for a direct heating system. Tank capacity available is 30, 40 & 50 tons.
Fully insulated double walled tank is equipped with separate high-pressure electronic burner for heating the Bitumen Storage Tankand control unit capable of metering and spraying required quantity of bitumen at specified temperature. The positive displacement jacketed asphalt pump coupled with reduction gearbox and variable speed motor is provided with hot oil circulating system. All the asphalt carrying pipelines are hot oil jacketed and thoroughly insulated with asbestos tape.
We have invented, designed, developed and engineered a wide variety of successful products including consumer products Road Construction equipments, Plastic Machineries, Pipe Coating Industries, Custom Machine Design & developments.
